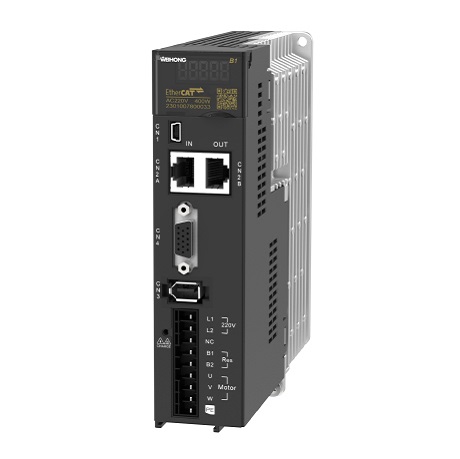

Basic Specification

Main Circuit Power Supply
WSD-B1-02B、WSD-B1-04B：Single-phase 200V~240V ^+10%_- 15%，50/60HZ
WSD-B1-08B、WSD-B1-10B：Single/three-phase 200V~240V ^+10%_- 15%，50/60HZ
WSD-B1-15B：Three-phase 200V~240V ^+10%_- 15%，50/60HZ
WSD-B1-15C、WSD-B1-30C、WSD-B1-50C、WSD-B1-75C、WSD-B1-110C：Three-phase 380V~440V ^+10%_- 15%，50/60HZ

Control Circuit Power Supply
WSD-B1-02B、WSD-B1-04B、WSD-B1-08B、WSD-B1-10B：None
WSD-B1-15B：Single-phase 200V~240V ^+10%_-15%，50/60HZ
WSD-B1-15C、WSD-B1-30C、WSD-B1-50C、WSD-B1-75C、WSD-B1-110C：Single-phase 380V~440V  ^+10%_- 15%，50/60HZ

Control Mode
SVPWM

Encoder Support
17 bits/20 bits/23 bits/24 bits/25 bits

Communication Method with PC
USB Communication

Panel Operator
5 buttons, 5 bits LED display

Regenerative resistor
200W、400W：No built-in regenerative resistor
750W、1.0kW、1.5kW、3.0kW、5.0kW、7.5kW、11Kw：Built-in regenerative resistor

Dynamic Brake
Built-in

Control Mode
Including position control、velocity control、torque control、
position speed switching control、position torque switching control、
and speed torque switching control
